HDA-HC-FFM防護電容器

發 布：2025-02-13 瀏覽：476

021-37595788

199-2196-1545

立即訂購

在線咨詢

產品詳情

HDA-HC-FFM防護電容器（Protective capacitors），是用于保護電器設備的裝置。該裝置和電阻串聯時，構成阻容式RC過電壓吸收裝置，能限制開關切合時的過電壓，保護電器設備。防護電容器還可當作高壓電容器在其它場合下使用；接于線地之間時，可以降低大氣過電壓，波前陡度和波峰峰值，配合避雷器保護電器。

技術參數

額定電壓	6~35kV
絕緣水平	42/75kV
額定電容	0.1μF
額定頻率	50Hz/60Hz （其他可定制）
電容偏差	-5~+10%
溫度類別	-40/B
介質損耗角正切值	在額定電壓Un下，20℃時的tgδ≤0.0005
過電壓	電容器能在1.1Ue下長期運行，并能承受第一個峰值不超過2.5Ue的因斷路器開合時產生的操作過電壓
過電流	電容器能在1.5Ie下長期運行，此電流即包括穩態過電壓引起的電流，也包括諧波引起的電流，同時包括電容偏差所增加的電流

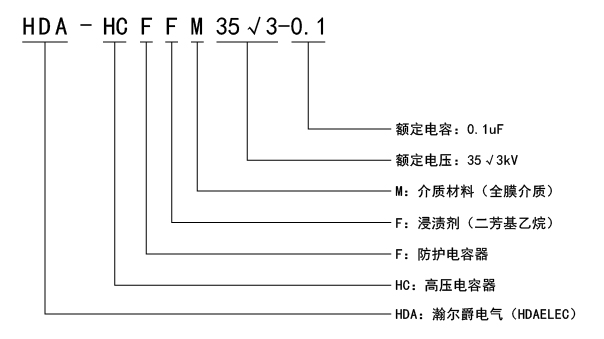

規格型號

1_畫板 1 副本 18

*尺寸變化恕不通知，以實際交貨產品為準；如需更詳細技術資料，請致電HDAELEC.
