HDA-RFM電熱電容器

發 布：2025-02-14 瀏覽：348

021-37595788

199-2196-1545

立即訂購

在線咨詢

產品詳情

HDA-RFM電熱電容器主要用于頻率為40～50000HZ的感應加熱電氣系統中，用來改善感應加熱、熔化攪拌或鑄造裝置，用作提高功率因數或改善回路特性。電熱電容器主要由芯子和箱殼組成，其間充滿定制的浸漬劑，芯子焊有冷卻水管，供電容器冷卻用，電容器箱殼采用鋁合金或黃銅板，可大大降低因渦流引起的發熱。

技術參數

安裝地點	海拔高度不超過1000米的無侵蝕性的蒸汽和氣體戶內
溫度	電容器使用時進水溫度不高于30℃，出水溫度不高于40℃
容量偏差	電容器實測電容量的偏差不超過標稱值的-5%~+10%
容量偏差	電容器用來接成串聯運行的各電容器極間測得的最大與最小電容量之比不大于1.10
損耗	電容器在工頻交流的額定電壓下，20±10℃時的損耗角正切值≤0.05%
耐壓能力	電容器允許在不高于額定電壓及額定頻率的條件下長期運行
耐壓能力	并能在額定頻率1.05Un的電壓下每天運行12小時
耐流能力	電容器允許在不超過1.15In的電流下長期運行
技術標準	GB/T3984-2004 、IEC60110:1998

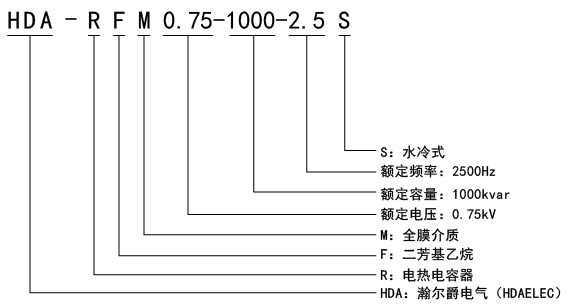

規格型號

電能質量優化_畫板 1 副本 19

額定容量 Rated Capacitance（kvar）	型號規格 Part Number	額定電壓 Rated Voltage（kV）	額定頻率 Rated Frequency	標稱電容 Rated Capacitance（uF）	接線柱 Stud	重量 Weight（kg）
300	HDA-RFM0.375-300-1S	375	1000	4×84.9	M12	29
500	HDA-RFM0.375-500-1S	375	1000	6×94.4	M12	42
600	HDA-RFM0375-600-1S	375	1000	6×113.2	M12	53
250	HDA-RFM0.375-250-2.5S	375	2500	4×28.3	M12	14
500	HDA-RFM0.375-500-2.5S	375	2500	4×56.6	M12	24
750	HDA-RFM0.375-750-2.5S	375	2500	6*56.6	M12	29
850	HDA-RFM0.375-850-2.5S	375	2500	6×64.2	M12	32
1000	HDA-RFM0.375-1000-2.5S	375	2500	6×75.5	M12	39
260	HDA-RFM0.375-260-4S	375	4000	4×18.4	M12	14
360	HDA-RFM0.375-360-4S	375	4000	4×25.5	M12	14
720	HDA-RFM0.375-720-4S	375	4000	4×51	M16	24
320	HDA-RFM0.375-320-8S	375	8000	4×11.3	M12	14
800	HDA-RFM0.375-800-8S	375	8000	4×28.3	M16	24
500	HDA-RFM0.5-500-1S	500	1000	6×53.1	M12	29
1070	HDA-RFM0.5-1070-1S	500	1000	8×85.2	M12	54
250	HDA-RFM0.5-2530-2.5S	500	2500	4×15.9	M12	14
500	HDA-RFM0.5-300-2.5S	500	2500	4×31.8	M12	24
1000	HDA-RFM0.55-1000-2.5S	550	2500	6×35.1	M12	29
750	HDA-RFM0.75-750-0.5S	750	500	6×70.8	M12	41
1000	HDA-RFM0.75-1000-0.5S	750	500	10×56.6	M12	55
360	HDA-RFM0.75-360-1S	750	1000	4×25.5	M12	14
720	HDA-RFM0.75-720-1S	750	1000	4×51	M12	24
1000	HDA-RFM0.75-1000-1S	750	1000	6×47.2	M12	29
1000	HDA-RFM0.75-1000-1S（Ⅱ型）	750	1000	6×47.2	M12	34
1500	HDA-RFM0.75-1500-1S	750	1000	6×70.8	M12	41
2000	HDA-RFM0.75-2000-1S	750	1000	10×56.6	M12	55
500	HDA-RFM0.75-500-2S	750	1000	4×17.7	M12	14
1000	HDA-RFM0.75-1000-2S	750	2000	4×35.4	M16	24
1500	HDA-RFM0.75-1500-2S	750	2000	6×35.4	M16	29
500	HDA-RFM0.75-500-2.5S	750	2500	4×14.2	M12	14
1000	HDA-RFM0.75-1000-2.5S	750	2500	4×28.3	M16	24
1500	HDA-RFM0.75-1500-2.5S	750	2500	6×28.3	M16	29
1800	HDA-RFM0.75-1800-2.5S	750	4000	6×34	M12	14
260	HDA-RFM0.75-260-4S	750	4000	4×4.60	M12	14
560	HDA-RFM0.75-560-4S	750	4000	4×9.91	M12	14
640	HDA-RFM0.75-640-4S	750	4000	4×11.3	M12	14
1000	HDA-RFM0.75-1000-4S	750	4000	4×17.7	M16	24
1250	HDA-RFM075-1250-4S	750	4000	6×14.7	M12	29
1500	HDA-RFM0.75-1500-4S	750	4000	6×17.7	M16	29
1000	HDA-RFM0.75-1000-6S	750	6000	4×11.8	M16	24
320	HDA-RFM0.75-320-8S	750	8000	4×2.83	M12	14
640	HDA-RFM0.75-640-8S	750	8000	4×5.66	M12	14
720	HDA-RFM0.75-720-8S	750	8000	4×6.37	M12	14
1000	HDA-RFM0.75-1000-8S	750	8000	4×8.85	M16	24
1000	HDA-RFM1-1000-0.5S	1000	500	6×53.1	M12	43
360	HDA-RFM1-360-1S	1000	1000	4×14.3	M12	14
720	HDA-RFM1-720-1S	1000	1000	4×28.7	M12	24
1000	HDA-RFM1-1000-1S	1000	1000	6x26.5	M12	29
1000	HDA-RFM1.2-1000-0.5S	1200	500	6×36.9	M12	37
1500	HDA-RFM1.2-1500-0.5S	1200	500	6×55.3	M12	49
2000	HDA-RFM1.2-2000-0.5S	1200	500	8×55.3	M12	65
750	HDA-RFM1.2-750-1S	1200	1000	4×20.7	M12	24
1000	HDA-RFM1.2-1000-1S	1200	1000	6×18.4	M12	29
1500	HDA-RFM1.2-1500-1S	1200	1000	6×27.6	M12	29
2000	HDA-RFM1.2-2000-1S	1200	1000	6×36.9	M12	37
1000	HDA-RFM1.4-1000-0.5S	1400	500	6×27.1	M12	33
1500	HDA-RFM1.4-1500-0.5S	1400	500	6×40.6	M12	41
2000	HDA-RFM1.4-2000-0.5S	1400	500	6×54.2	M12	60
1000	HDA-RFM1.5-1000-0.5S	1500	500	6×23.6	M12	33
1500	HDA-RFM1.5-1500-0.5S	1500	500	6×35.4	M12	39
2000	HDA-RFM1.5-2000-0.5S	1500	500	6×47.2	M12	57
1000	HDA-RFM1.6-1000-0.5S	1600	500	6×20.7	M12	33
1500	HDA-RFM1.6-1500-0.5S	1600	500	6×31.1	M12	40
2000	HDA-RFM1.6-2000-0.5S	1600	500	6×41.5	M12	57
1000	HDA-RFM1.8-1000-0.5S	1800	500	6×16.4	M12	33
1500	HDA-RFM1.8-1500-0.5S	1800	500	6×24.6	M12	40
2000	HDA-RFM1.8-2000-0.5S	1800	500	6×32.8	M12	57

*尺寸變化恕不通知，以實際交貨產品為準；如需更詳細技術資料，請致電HDAELEC.
